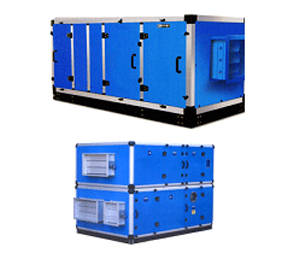

Consultech manufacture modular air handling units. Our Air Handling Units (AHU) are available in different capacities.
Main Features of our AHU: - Strong framework design has inherent strength and stability. The aluminum profiles are corrosion resistant with specially designed three way corners. The panels are pressure injected with CFC free polyurethane foam up to 40 Kg/cum densities. The entire framework is mounted on a galvanized steel channel base. The condensate drain pan is fabricated out of corrosion resistant stainless steel insulated on outside with close cell insulation.

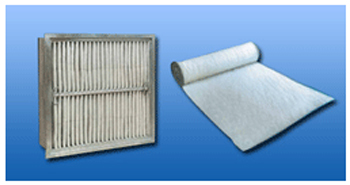

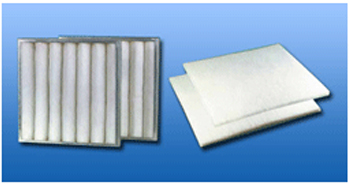

The units are compact in design to provide vibration-free, noiseless performance and are easily maintainable. Basic assembly consists of sections with imported centrifugal fan, cooling coil, and filters. Add-on optional modules such as thermal break with coved profiles, heating coil, face and pass damper, humidifiers and air mixing chambers are also available on specific demand. Units can be manufactured with direct drive plug fans as well.
Units available in Single Skin , Double Skin, Ceiling Suspended type.
Highest efficiency in an Air Handling System is always attained when the capacity, size and other specifications are most suited to the work to be performed.
The following factors are important while selecting the most appropriate Air Handling Unit for a specific application.
The AHU’s is of the self-supporting type without framework, and of perfectly smooth metallic interior construction without any visible screws. The liaisons between modules ensure perfect continuity of the air passage tunnel with thermal bridge breakage and a smooth interior finish without any rough points at the joining surfaces to prevent any dust build-ups encouraging microbial growth.
Hexagonal inserts are factory-fitted and pre-positioned to ensure perfect compression of the tightness seals between the modules during assembly on site
The modules are fastened from the outside by means of a thermal bridge breakage system (angle pieces and bolts). All internal electrical components and entire AHU are earthed
The AHU’s are delivered with continuous base frame. This base frame comprises the required openings of sling hooks / handling as well as openings for attaching rubber pads.
Fresh air / exhaust air weather hood equipped with bird screen is available as optional.
The panels are of the double skin type with a uniform thickness of 50 mm, Insulation can be
The construction of the access doors is identical to the AHU’s panel construction.
The hinges are of the polyamide (anticorrosion) offset type.
The door locking system comprises progressive tightening, “rotor” locking handles for door alignment and perfect seal continuity (on both the positive pressure and negative pressure sides) between the doors and the panels.
