Dry Type Paint Booths

We are Manufacturer, Supplier, Exporter of Dry Type Paint Booths, Spray Painting Booths, Side Draft Dry Spray Booths. Our setup is situated in Pune, Maharashtra, India & majorly we serve our products to customers from India, Sri Lanka, Bangladesh & Gulf countries like Bahrain, Oman, Qatar, Saudi Arabia, Egypt, Jordan, Lebanon, Syria, Yemen, Kuwait, Dubai, UAE ( United Arab Emirates ) etc.


Highest efficiency in a spray booth is always attained when the capacity, size and other specifications are most suited to the kind of work to be performed.

The following factors are important while selecting the most appropriate booth for a specific coating component.

  • Size of the article to be coated.
  • Rate of production (i.e. Paint Consumption).
  • Product handling method.

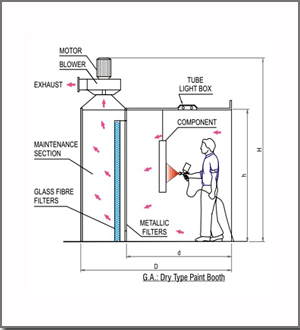

  • Oversprayed paint is sucked in by the blower through synthetic glass fibre filter or metallic filter arrester.
  • Dry arresting of paint without water and chemicals.
  • Even suction over the full height of the booth.
  • Simple maintenance.
  • Ideal use for all type of paint applications.

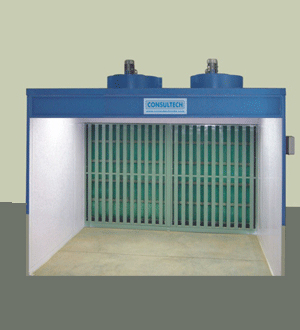

Side Draft Dry Spray Booths
Models Dimension in (mm) Exhaust Blower Tube Lights
W/w D/d H/h

Capacity M3/hr

Motor Rating

Watts Nos.
DrySpary- WW15 1594/1500 2394/1500 3600/2100 1 x 6800 1 x 3.12 KW 2 x 36 1
DrySpary- WW21 2194/2100 2394/1500 3600/2100 1 x 7900 1 x 3.70 KW 2 x 36 1
DrySpary- WW30 3094/3000 2694/1800 3600/2100 2 x 6800 2 x 3.12 KW 2 x 36 2
DrySpary- WW36 3694/3600 2694/1800 3600/2100 2 x 7900 2 x 3.70 KW 2 x 36 3


(i) W x D x H : Overall Width x Depth x Height

(ii) w x d x h : Working Width x Depth x Height

Larger sizes are available against specific requirements.

Optional: Flameproof accessories are available against specific requirements.
